F1C200S一步到位编译法 兜兜转转还是玩上了MangoPi-R3!因为是ARM9的芯片内核架构,所以总觉得过时了的,至少也要整个ARM-A7的架构芯片。
前言 https://mangopi.cc/f1c_mainline https://wiki.dfrobot.com/MangoPi_R3_SKU_DFR0780

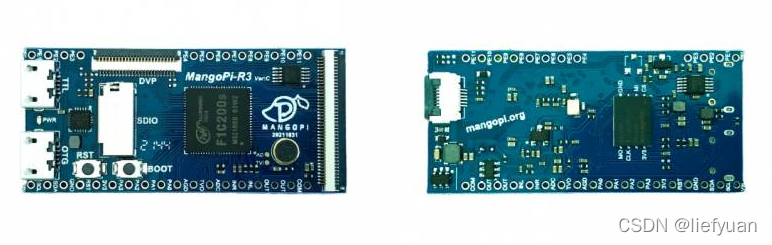

介绍 这款微型开发板专为运行 Linux 而设计。尽管机身很小,但它具有所有重要功能。板载F1C200S作为主控芯片,提供多种常用外设端口:GPIO、I2C&SPI、SDIO、Audio port(record,play), Video(RGB565 Display, touch, DVP), USB Host, OTG等. 此外,板卡内置64MB DDR和板载128MB Nand Flash,全面支持Linux生态,运行完整的Python。
目前该产品是完全开源的,用户可以根据自己的需求编译任意模块。但是,它主要面向 Python 开发人员和高级爱好者,因为它上手有点困难。
规格
芯片型号
F1C100S
F1C200S
F1C500S
F1C600
内存
SIP 32MB DDR1
64MB DDR1
128MB DDR1
256MB DDR1
QFN88封装(10x10mm)
板载 128MB Nand Flash
ARM926EJ-S内核,420MHz系统时钟默认频率,可超频至700MHz及以上
丰富的 GPIO 引脚
板载 SDIO 接口,用于连接 SD 卡或 SDIO WiFi + BT 模块
DVP摄像头接口,支持OV2640、GC0328等摄像头。
RGB565显示接口和6线触摸接口
板载麦克风和功率放大器
低功耗
支持完整的Python运行
芯片优缺点
缺点:主频过低,内核太古老(ARM9)
优点:便宜,内置DDR,资料丰富(老芯片的优势)
MangoPi的Buildroot一键编译 地址:https://github.com/mangopi-sbc/buildroot-mangopi-r
安装软件包
1 2 sudo apt install rsync wget unzip build-essential git bc swig libncurses-dev libpython3-dev libssl-dev sudo apt install python3-distutils
下载BSP包
1 git clone https://github.com/mangopi-sbc/buildroot-mangopi-r
第一次编译 注意:构建固件不需要 Root 权限。
应用默认配置 注意:应用 defconfig 会将所有 buildroot 配置重置为默认值。
通常,您只需要应用一次。
1 2 cd buildroot-mangopi-rmake widora_mangopi_r3_defconfig
常规编译
如果更改了 DTS 或 kenrel 构建
如果更改了 Uboot,则构建
加快构建进度 在百度云下载离线的 dl Buildroot 将在编译固件时下载源代码。您可以获取“dl”文件夹的可信存档以加快速度。 https://pan.baidu.com/s/1-5CiMwXMQWjZxsFhsyRC5Q?pwd=1111
没有搞清楚这里是怎么用的,现在是下载了两个包:
buildroot-dl-20220130.zip
buildroot-mangopi-r-master.zip 是不是把buildroot-dl-20220130.zip解压到buildroot-mangopi-r-master目录里面呢?
明白了,把buildroot-dl-20220130.zip解压出来并改名为dl,然后再把dl移动到buildroot-mangopi-r-master.zip解压出来的文件夹目录里面去就行了,编译的好快 啊。
最终编译完成了。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 INFO: hdimage(sysimage-sdcard.img): adding partition 'u-boot' (in MBR) from 'u-boot-sunxi-with-spl.bin' ... INFO: hdimage(sysimage-sdcard.img): adding partition 'boot' (in MBR) from 'bootfs.vfat' ... INFO: hdimage(sysimage-sdcard.img): adding partition 'rootfs' (in MBR) from 'rootfs.ext4' ... INFO: hdimage(sysimage-sdcard.img): writing MBR board/allwinner/generic/genimage-nor.cfg:33: no sub-section title/index for 'config' INFO: cmd: "mkdir -p " /home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/build/genimage.tmp"" (stderr): INFO: cmd: "rm -rf " /home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/build/genimage.tmp"/*" (stderr): INFO: cmd: "mkdir -p " /home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/build/genimage.tmp"" (stderr): INFO: cmd: "cp -a " /tmp/tmp.kqghzcncg8" " /home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/build/genimage.tmp/root"" (stderr): INFO: cmd: "find '/home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/build/genimage.tmp/root' -depth -type d -printf '%P\0' | xargs -0 -I {} touch -r '/tmp/tmp.kqghzcncg8/{}' '/home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/build/genimage.tmp/root/{}'" (stderr): INFO: cmd: "mkdir -p " /home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/images"" (stderr): INFO: flash(sysimage-nor.img): writing image partition 'u-boot' (0x80000@0x0) INFO: flash(sysimage-nor.img): writing image partition 'splash' (0x80000@0x80000) INFO: flash(sysimage-nor.img): writing image partition 'kernel' (0x500000@0x100000) INFO: flash(sysimage-nor.img): writing image partition 'rom' (0xa00000@0x600000) board/allwinner/generic/genimage-nand.cfg:39: no sub-section title/index for 'config' INFO: cmd: "mkdir -p " /home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/build/genimage.tmp"" (stderr): INFO: cmd: "rm -rf " /home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/build/genimage.tmp"/*" (stderr): INFO: cmd: "mkdir -p " /home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/build/genimage.tmp"" (stderr): INFO: cmd: "cp -a " /tmp/tmp.cjWlxAkEjg" " /home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/build/genimage.tmp/root"" (stderr): INFO: cmd: "find '/home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/build/genimage.tmp/root' -depth -type d -printf '%P\0' | xargs -0 -I {} touch -r '/tmp/tmp.cjWlxAkEjg/{}' '/home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/build/genimage.tmp/root/{}'" (stderr): INFO: cmd: "mkdir -p " /home/liefyuan/Liefyuan/mangopi-r/buildroot-mangopi-r-master/output/images"" (stderr): INFO: flash(sysimage-nand.img): writing image partition 'u-boot' (0x80000@0x0) INFO: flash(sysimage-nand.img): writing image partition 'splash' (0x80000@0x80000) INFO: flash(sysimage-nand.img): writing image partition 'kernel' (0x500000@0x100000) INFO: flash(sysimage-nand.img): writing image partition 'rom' (0x7700000@0x600000) real 20m23.669s user 93m8.759s sys 31m2.006s
编译出来的文件:buildroot-mangopi-r-master/output/images
一步到位,所有版本都编译出来了(牛逼!):
1 2 3 4 5 6 bootfs.vfat rootfs.ext4 sysimage-sdcard.img devicetree.dtb rootfs.squashfs u-boot.bin kernel.itb rootfs.tar u-boot-sunxi-with-nand-spl.bin rootfs.cpio splash.bmp u-boot-sunxi-with-spl.bin rootfs.cpio.gz sysimage-nand.img zImage rootfs.ext2 sysimage-nor.img
刷固件 指导说明文档:https://github.com/mangopi-sbc/buildroot-mangopi-r/blob/master/flashutils/README.md
Windows下失败了,转战Linux下烧录
Linux下烧录 sunxi-tools 是全志 SoC(全志科技开发的智能应用处理器 SoC)ARM 设备的命令行工具集合。
设置和安装 sunxi-tools
安装依赖包
1 sudo apt install pkg-config zlib1g-dev libusb-dev libusb-1.0-0-dev
下载代码
1 git clone https://github.com/Icenowy/sunxi-tools.git -b f1c100s-spiflash
编译安装
1 2 3 cd sunxi-toolsmake sudo make install
什么是dfu? 设备固件升级(DFU)是一种独立于分销商和设备的机制,用于通过其制造商提供的改进版本来升级USB设备的固件,从而提供(例如)一种部署固件错误的方法修复。在固件升级操作过程中,USB 设备将有效地改变其工作模式,从而成为 PROM 编程器。按照官方 DFU 规范,任何类型的 USB 设备都可以实现此功能。DFU 还允许用户自由使用备份固件来刷新 USB 设备。结果之一是刷新的 USB 设备可以充当多种设备类型。
什么是 dfu-util? dfu-util 是一个实现 USB DFU(通用串行总线设备固件升级)协议的主机 (PC) 程序。DFU 会将固件下载到通过 USB 连接的设备,或从设备下载固件。其应用范围从微控制器板等小型设备到手机设备。使用 dfu-util,您可以从支持 DFU 的设备下载/上传固件。
通过 apt-get 安装 dfu-util
1 sudo apt install dfu-util
安装putty putty 是一个 Telnet、SSH 和串口连接软件。
安装串口工具putty
1 sudo apt-get install putty
打开串口调试软件putty
默认安装的情况下,putty被添加到/usr/bin目录下,所以可以直接在终端使用putty命令打开。
在ubuntu上找串口号
1 2 3 4 liefyuan@ubuntu:~/Liefyuan/myGit$ dmesg | grep tty [ 0.004000] console [tty0] enabled [ 1.247164] 00:05: ttyS0 at I/O 0x3f8 (irq = 4, base_baud = 115200) is a 16550A [25931.988675] usb 2-2.2: ch341-uart converter now attached to ttyUSB0
由此可知,板子的串口是ttyUSB0
一般串口的名字在dev下,如果没有外接串口卡,默认是dev。
使用命令ls /dev/ttyUSB0
查看是否存在
1 2 liefyuan@ubuntu:~/Liefyuan/myGit$ ls /dev/ttyUSB0 /dev/ttyUSB0
如果结果存在,则串口地址为/dev/ttyUSB0

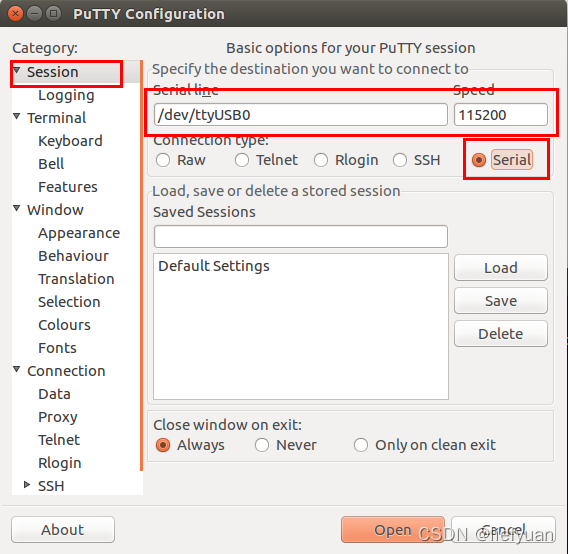

在putty中填入串口,然后打开串口格式化
序列号:填写对应的序列号 速度:填写115200
打开有问题时记得加sudo putty
擦除 putty打开以后,就进入固件位置: 同时按下tiny200的开机键和rst键,然后松开
此时运行.\fel-uboot.sh脚本
putty里面就有打印数据了
然后等待操作完成后,在putty里面输入命令:mtd erase spi-nand0,格式化。

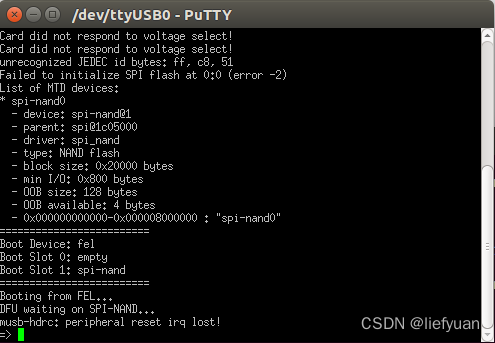

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 U-Boot SPL 2020.07 (Feb 16 2022 - 01:28:19 +0000) DRAM: 64 MiB Trying to boot from FEL U-Boot 2020.07 (Feb 16 2022 - 01:28:19 +0000) Allwinner Technology CPU: Allwinner F Series (SUNIV) Model: Allwinner F1C100s Generic Device DRAM: 64 MiB MMC: mmc@1c0f000: 0, mmc@1c10000: 1 Setting up a 800x480 lcd console (overscan 0x0) In: serial Out: vga Err: vga Allwinner mUSB OTG (Peripheral) Hit any key to stop autoboot: 0 Card did not respond to voltage select! Card did not respond to voltage select! unrecognized JEDEC id bytes: ff, c8, 51 Failed to initialize SPI flash at 0:0 (error -2) List of MTD devices: * spi-nand0 - device: spi-nand@1 - parent: spi@1c05000 - driver: spi_nand - type : NAND flash - block size: 0x20000 bytes - min I/O: 0x800 bytes - OOB size: 128 bytes - OOB available: 4 bytes - 0x000000000000-0x000008000000 : "spi-nand0" ========================= Boot Device: fel Boot Slot 0: empty Boot Slot 1: spi-nand ========================= Booting from FEL... DFU waiting on SPI-NAND... musb-hdrc: peripheral reset irq lost! => mtd erase spi-nand0 Erasing 0x00000000 ... 0x07ffffff (1024 eraseblock(s)) =>
添加文件权限 使用ll命令查看文件权限。
如果文件没有执行权限,则需要添加权限,通过以下命令添加权限。
1 2 chmod +x fel-uboot.sh chmod +x dfu-nand-ubifs.sh
开始烧录 输入固件文件夹
按下开发板子上的 boot 按钮和 rst 按钮,然后松开rst按钮并运行以下命令。
1 sudo ./fel-uboot.sh && ./dfu-nand-ubifs.sh
开始烧录啦,挺壮观的!
